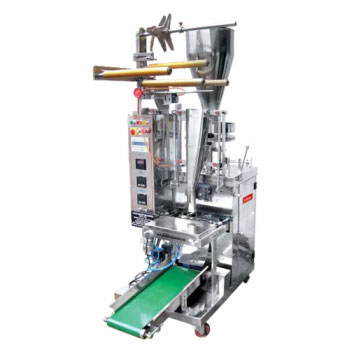

FFS Pouch Packing Machines with Cup-Filler

We are instrumental in designing and manufacturing FFS cup filler automatic pouch packing machines that are used for filling cups for packaging purposes. These machines are available for our clients in the capacity range of 300 cups per hour to 12000 cups per hour.

  • Pneumatic cup falling design
  • Provided with Coding device (optional)
  • Double Sealing Feature for Better Sealing Quality
  • Stainless steel construction
  • In compliance with Sanitation Standards
  • Integrated with Waste Film Collection Device
  • Independent Control on Each Mold
  • Fully Automatic Working (with PLC control)
  • Equipped with Touch-Sensing Screen for Maximum Operation Convenience
  • Equipped with a Three-Color Warning Light for Clear Warning in Case Of Malfunction
  • Fully Automatic Operations for Fast and High Production
Technical Specifications
  1. Packing Range: 10gm to100 / 100gm to 250gm
  2. Speed: 25 to 40 Bag/min (Varies with the Nature of Product & Filling Range)
  3. Filling System: Volumetric Cup Filler
  4. Type of Sealing: Canter Seal / 3 Side Seal
  5. Packing Material: Laminated Film
  6. Optional: Batch Coding Device, Batch Cutting Device and Gas Flushing Unit
  7. Weight: 450kg (Approx)
